At focuzz technology, we don't just supply vacuum technology—we create it. We stand as a premier provider of comprehensive vacuum pumping solutions, uniquely integrating Research, Design, and Development (R&D&D) under one roof.
By combining advanced engineering with tailored manufacturing, we deliver high-performance vacuum systems that redefine efficiency, reliability, and precision for industries worldwide.
More About UsWe are a team of passionate engineers, vacuum specialists, and manufacturing experts dedicated to solving the most challenging pressure-reduction problems. Whether it is a standard industrial application or a complex, high-vacuum requirement.
When you choose [Company Name], you are partnering with a company that controls the entire process—from initial research to final installation. Let us help you elevate your productivity with advanced vacuum pumping solutions.
"One-Stop Solution": Emphasize that R&D, Design, and Development are under one roof. Customization: Highlight ability to build bespoke vacuum systems.

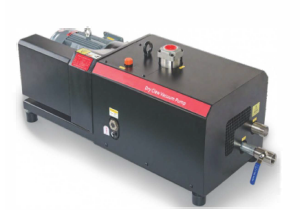

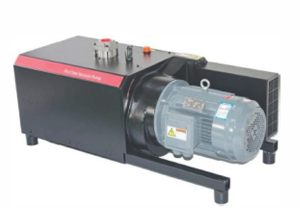

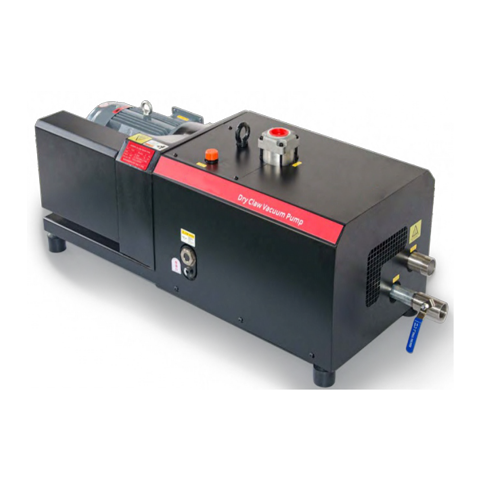

The HCP Series Dry Single Claw Vacuum Pump is a high-performance, oil-free solution designed for demanding industrial environments where cleanliness and low maintenance are critical. By using a non-contacting claw mechanism, these pumps provide a reliable, dry vacuum that eliminates the risk of oil contamination in sensitive processes.
Delivers an oil-free, hygienic vacuum environment ideal for meat packing, bottling, and tray sealing. It ensures product freshness and prevents oil-mist contamination in sensitive production zones.
Accelerates moisture removal and deep-penetration of resins or chemicals into porous materials. Its robust design handles high water vapor loads without loss of performance or internal wear.
Provides steady, pulse-free suction for moving granules, powders, and small components through transport lines. It minimizes material breakage and ensures efficient, 24/7 automated conveying.
Efficiently removes trapped air and dissolved gases from oils, resins, and silicone to eliminate bubbles. This process enhances product structural integrity and creates a high-quality, professional finish.
Offers the high flow rates required to pull plastic sheets rapidly into molds for precise shaping. It is a critical component for high-speed manufacturing of containers, trays, and automotive parts.
Supplies reliable, low-noise suction for central hospital pipelines, surgical theatres, and laboratory settings. The dry technology meets strict healthcare standards by eliminating the risk of oil-based biohazards.

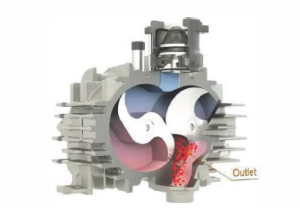

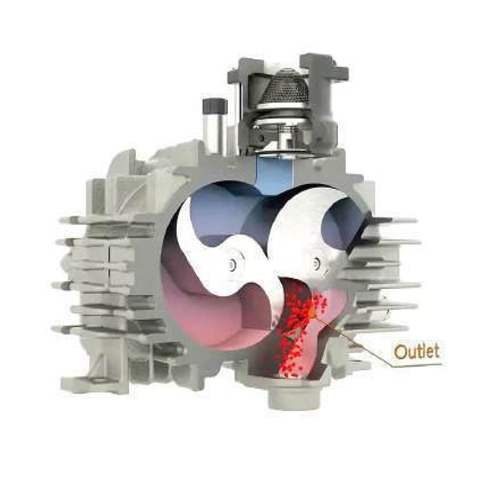

HCP series claw vacuum pump is a rotary volumetric vacuum pump with a claw shaped rotor. The pump housing has two conjugate meshing claw shaped rotors, similar to the Roots vacuum pump. The rotors are driven to rotate and have a fixed phase by a pair of synchronous high-precision gears, and there is no contact between the rotors or between the rotors and the pump housing, leaving a small gap. The inlet and outlet of the gas are both located on the end face of the pump casing, and are periodically opened and closed by two rotor end faces, with a valve regulating effect.
Generally, star delta or de-pressurization starting should be used as the standard.
For special requirements, variable frequency motors and frequency converters can be installed to adjust the effective vacuum and pumping rate.
This series can be used in mobile vacuum and GMP environments, and can be personalized according to customer needs.
Corrosion resistant materials can be selected according to individual customer needs.
HCP series vacuum pump is suitable for low and medium vacuum fields, mainly used for extracting air and other dry gases. It is one of the main equipment for low and medium vacuum, and can be used alone or in series and parallel (series can improve the vacuum degree, parallel can improve the pumping rate). It can also be used as a pre pump for other vacuum pumps. This series of vacuum pumps has the characteristics of reliable operation without valve plates, springs, etc., few vulnerable parts, low vibration, low noise, and high efficiency. And it forms a vacuum without any medium or cooling water, without secondary pollution.
HCP series vacuum pump is made by introducing advanced foreign technology and using imported components or materials for key components, which can completely replace similar foreign products.
HCP series is particularly suitable for use in high-altitude and low-temperature areas, and its waterless air cooling overcomes the difficulties of starting and freezing cracking.
Food Processing, Drying and impregnation, Material Transport & storage, Degassing, Thermoforming, Plastic Industry, Hospital vacuum system - Medical
| Model | Unit | HCP100 | HCP200 | HCP250 | HCP350 | HCP650 |
|---|---|---|---|---|---|---|
| Pumping Speed (50Hz) | m³/h | 108 | 180 | 252 | 360 | 648 |
| Vacuum absolute (Air cooling) | mbar | 60 | 60 | 200 | 200 | / |
| Vacuum absolute (Water cooling) | mbar | / | / | 80 | 80 | 80 |
| Motor power | kW | 3 | 4 | 5.5 | 7.5 | 11.0 |
| Rated speed | rpm | 2980 | 2980 | 2980 | 2980 | 2980 |
| Inlet connection | in | G 1¼" | G 1¼" | G 2" | G 2" | G 3" |
| Pressure connection | in | G 1¼" | G 1¼" | G 1½" | G 1½" | G 2" |
| Complete weight | kg | 185 | 195 | 245 | 265 | 380 |
| Installation size | mm | 980×412×408 | 980×412×408 | 1200×510×450 | 1200×510×450 | 1110×580×800 |
| Noise level | dB | 72 | 72 | 74 | 74 | 76 |
Special materials are used for stable operation in any operating environment, and PEEK coating is carried out.
Simple structure, Easy to disassemble, Clean chamber
Long-term use due to bearing, Sealing structure free from contamination.
Superior performance, best-in-class vacuum performance and pumping speed, continuous low vacuum.
Excellent cost-effectiveness, Lowest power consumption compared to foreign products.
Low noise , Vibration level.
Technology: Dry, oil-free single-stage positive displacement claw pump.
Applications: Designed for rough vacuum applications where clean, dry, and stable vacuum performance is critical, including food packaging, electronics, medical systems, and material handling.
Box-shaped industrial machine

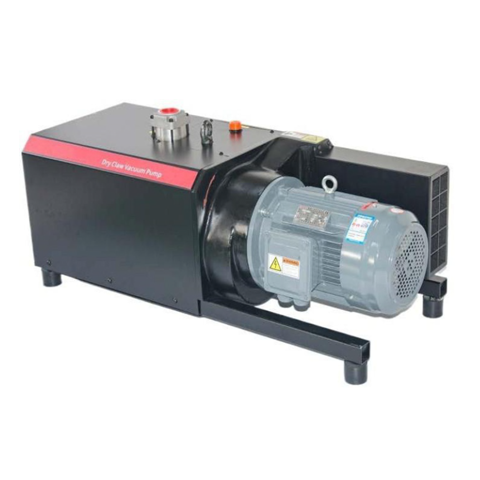

Dry claw vacuum pump
Dry claw vacuum pump

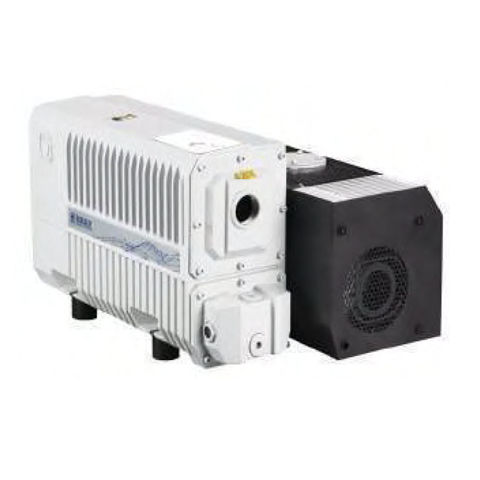

Rotary Vane Vacuum Pump

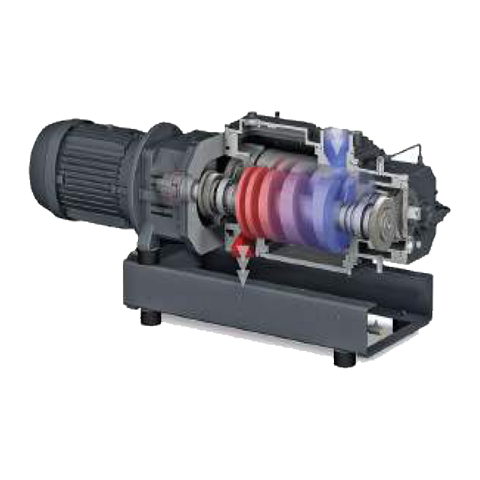

Twin Screw Vacuum Pump
Twin Screw Vacuum Pump
Twin Screw Vacuum Pump
Twin Screw Vacuum Pump
Twin Screw Vacuum Pump
Twin Screw Vacuum Pump
Twin Screw Vacuum Pump
Twin Screw Vacuum Pump
Twin Screw Vacuum Pump
Twin Screw Vacuum Pump
Twin Screw Vacuum Pump
Twin Screw Vacuum Pump
